Heavy Duty Wood Beam Swing Hanger

Price:
$14.99
SKU:
SH-05
Brand:
Reviews:
Availability:
Usually ships within 1-2 days
Shipping:
FREE Shipping on orders over $75! See details

Product Description

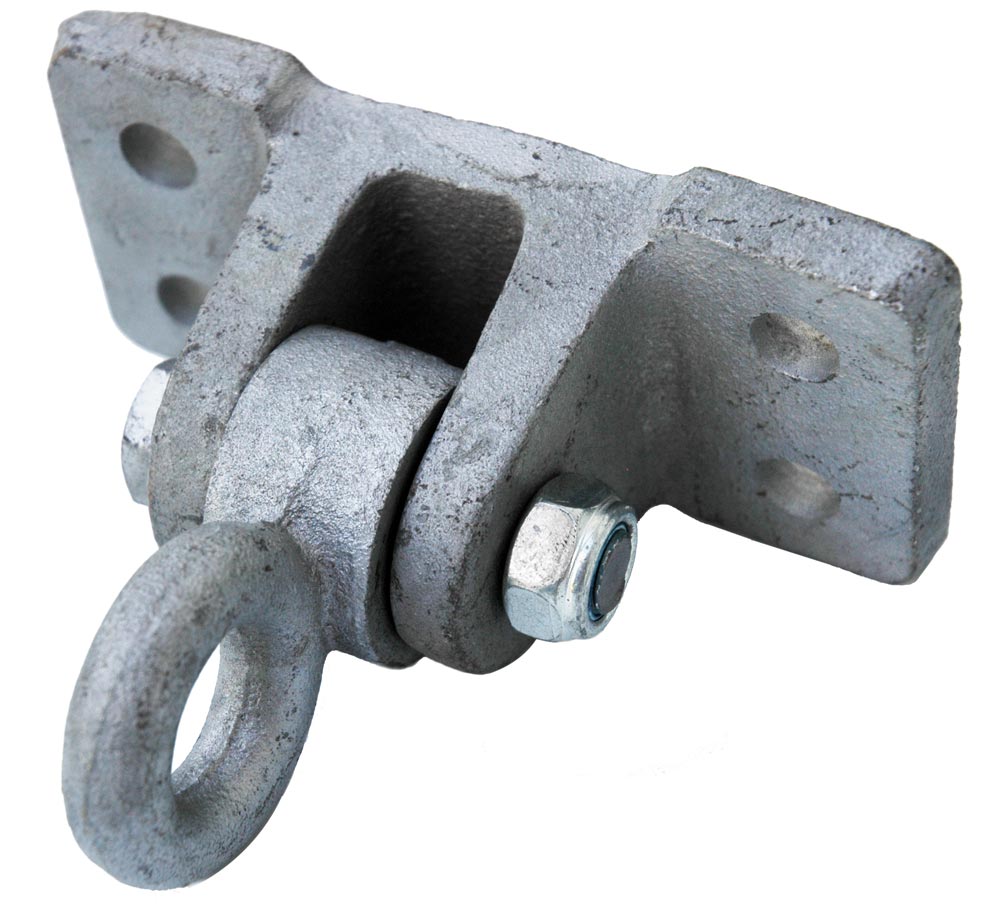

Our top-of-the-line Heavy Duty Wood Beam Swing Hanger is galvanized, made of ductile iron, and has a steel pivot bolt that suspends a tough bronze bushing. This swing hanger is a heavy duty alternative to our regular Wood Beam Swing Hanger, with its two extra holes which give it even greater strength for securing the swing hanger to a wood beam.

NEW! Now with the option of a Clevis style pendulum. The Clevis pin removes the need for other connecting hardware, such as s-hooks or spring clips. Easily connect chain directly to the swing hanger.

Swing Hanger Features

  • Sold individually
  • Made of durable galvanized ductile iron
  • Steel pivot bolt that suspends a tough bronze bushing
  • Four holes for bolting to wood beam
  • Select between a Loop or Clevis style pendulum
  • Loop pendulum may be turned 90° from the pictured orientation (no choice)
  • Important: Clevis pendulums require the SH-41 - Hex Tool (sold separately)
  • Dimensions (± 1/16"):
    • Mounting Plate Size: 5-1/8" x 2-1/2"
    • Mounting holes (center-to-center): 3-11/16" and 1-3/16"
    • Plate Thickness: 7/16"
    • Pendulum: 1" wide, 1/2" loop diameter, 7/8" hole diameter
    • Bolt holes: 3/8"

IMPORTANT: Clevis Pin Compatibility

Our current batch of H-55 and H-85 chain has links that are not wide enough to fit clevis pins. For this reason, we recommend going with our other chain options if you need chain that is compatible with our clevis connectors or pendulums. Or choosing a loop pendulum or different style connector. We apologize for this inconvenience.

Other Details

Recommended Use:
Commercial
